Stealth Head

$47,499.00

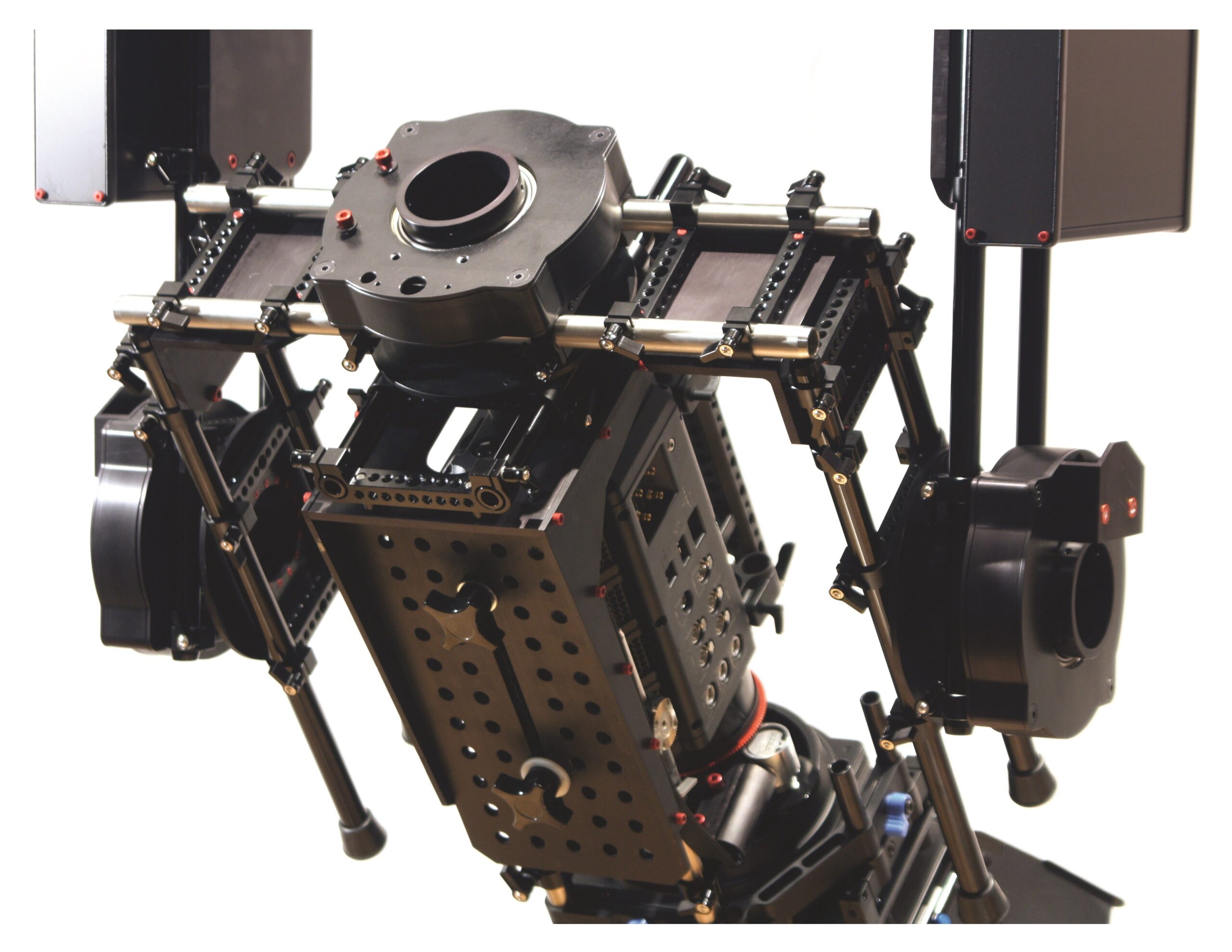

An ultra-quiet, ultra-precise 3-axis remote head

The Stealth Head is an ultra-quiet and frame-accurate 3-axis camera head.  It features patented direct drive motor technology with superior motor resolution for frame-accurate camera movements, and is lighter and more configurable than the pricey competitors.  No more having to use wide angle lenses to hide gear backlash, and it’s ultra-quiet for open mic shooting.

Due to global supply chain issues, this product is currently unavailable.  Please contact us if you’d like to be notified when it becomes available again.  We apologize for the inconvenience.

Out of stock

Category:

Description

HIGHLIGHTS

  • Newly designed zero-cogging, direct drive (gearless) servo motors
  • Patented motor precision method achieves over 720,000 pulses per revolution
  • Customizable and reconfigurable frame to mount small to full-size cameras as well as 3D setups (depends on rod lengths)
  • Numerous connector options for video, audio, and power
  • Can be operated with PTR Handwheels or Pan Bars
  • Go from underslung to overslung in less than 60 seconds
  • Custom vibration isolators
  • 100 mm bowl or Jimmy Jib mount

SPECIFICATIONS

  • Rotation: ±360° pan / tilt / roll
  • Speed: up to 180°/second
  • Head weight: 60 lbs (27 kg)
  • Camera load: 70 lbs (32 kg)

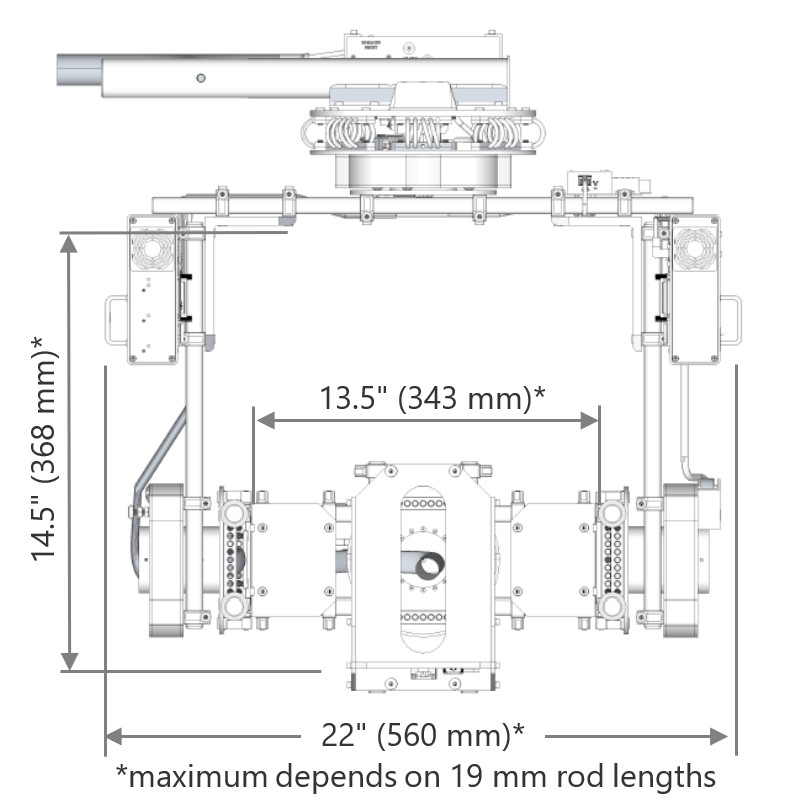

  • Dimensions (typical setup):
    • Width: 22″ (56 cm)*
    • Height: 22″ (56 cm)*
    • Depth: 15.75″ (40 cm)*

*Depends on length of 19 mm rods

IN THE BOX

  • Camera Head with choice of 100 mm bowl or Jimmy Jib mount



ACCESSORIES

  • Master Controller (required)
  • Power supply and control cable (required)
  • Option of Joystick, 3-Axis Hand Wheels, or Pan Bar Adapter
