Wireless Lens Control

$9,950.00

Featuring the industry’s smallest and lightest FIZ receiver

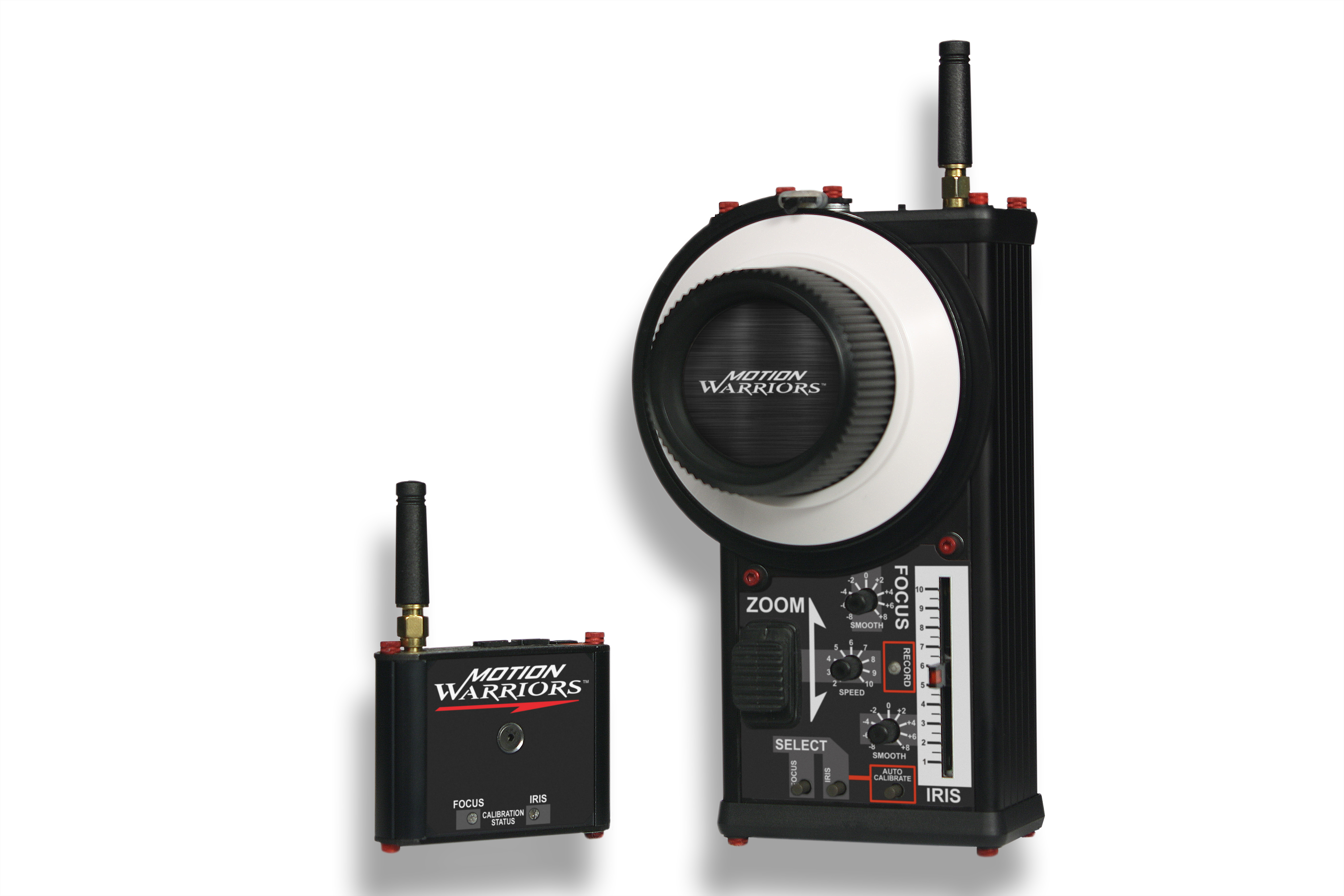

The FIZ-1611 offers simple, reliable 3-channel wireless lens control with all the features you want and none that you don’t.  The fully integrated wireless focus, iris, and zoom control can be used with industry standard 7-pin lens motors, offers screaming-fast lens calibration with rock-solid lens synchronization, and is recordable and repeatable with the Stealth System.  Real-time speed and damping controls replace time-consuming multi-level menus.  And the receiver is the industry’s smallest and lightest, making it ideal for drones, DSLRs, and cable-cams.

Category:

Description

HIGHLIGHTS

  • Rock-solid lens synchronization
  • Auto and manual lens calibration
  • Wired option (with standard Ethernet cable) for all 3 channels
  • On-the-fly speed and damping controls
  • Compatible with most industry-standard 7-pin lens motors
  • Smallest and lightest FIZ receiver in the industry
  • ServoLink™ – couple 2 motors to control a stiff lens ring
  • High motor resolution makes motor stepping virtually non-existent
  • Camera record/stop button
  • Encoder outputs for VFX use
  • Recordable and repeatable with the Stealth System

SPECIFICATIONS

  • 128 frequency channels
  • Wireless range: up to 1 mile
  • Battery life: up to 18 hours
  • Motor resolution: 4,096 steps
  • Dimensions:
    • Controller: 6.5 x 3.8 x 3.6” / 16.5 x 9.7 x 9.1 cm
    • Receiver: 2.8 x 1.9 x 0.7” / 7.1 x 4.8 x 1.8 cm
  • Weight:
    • Controller: 1.75 lbs. / 0.78 kg
    • Receiver: 3.2 oz. / 91 g



IN THE BOX

  • FIZ-1611 Transmitter
  • FIZ-1611 Receiver
  • 3 lens motor cables with 7-pin LEMO connectors, 24” / 0.6 m long
  • Transmitter AC adapter/charger
  • Receiver power cable (DTAP), 18″ / 0.46 m long
  • Waterproof case



Availability: October 1, 2019
